UML 2.2 : diagram 종류는 14개(=7+7)

세모아 2010. 7. 7. 15:29
My) 총 14 개 = Structure쪽 7 개 +  Bahavior쪽 7개.

발췌: http://en.wikipedia.org/wiki/Unified_Modeling_Language

Diagrams overview

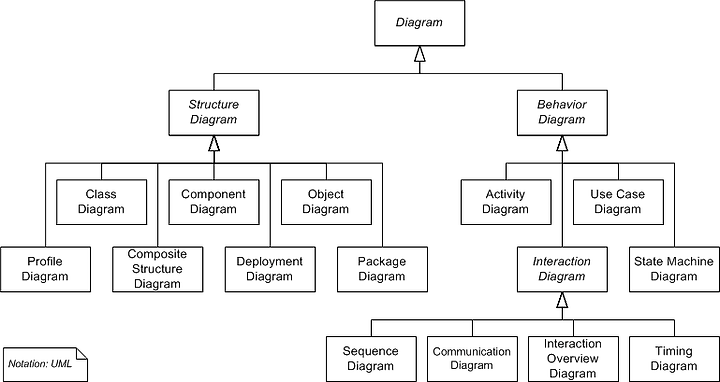

UML 2.2 has 14 types of diagrams divided into two categories.[11] Seven diagram types represent structural information, and the other seven represent general types of behavior, including four that represent different aspects of interactions. These diagrams can be categorized hierarchically as shown in the following class diagram:
